Quick Overview

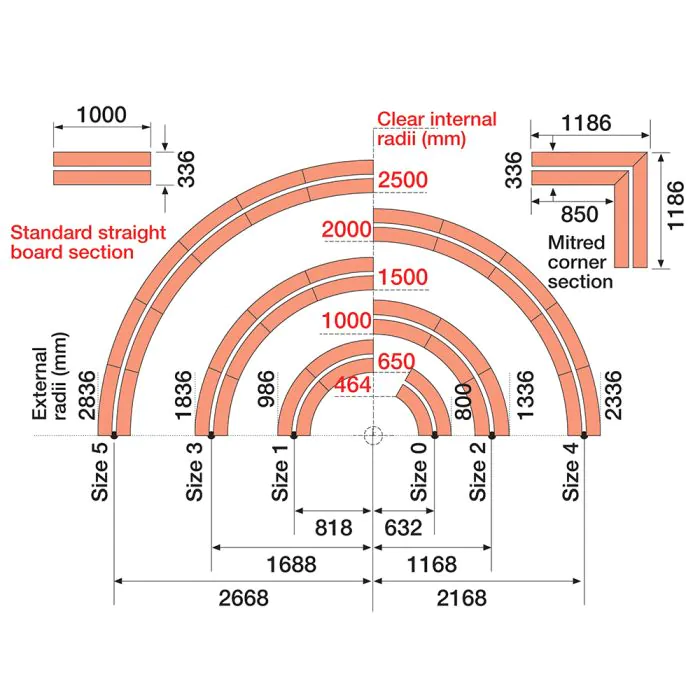

The Modulock Bench System offers very cost effective modular seating by using standard board sections which can be straight, mitred for corners, or curved in six different radii.

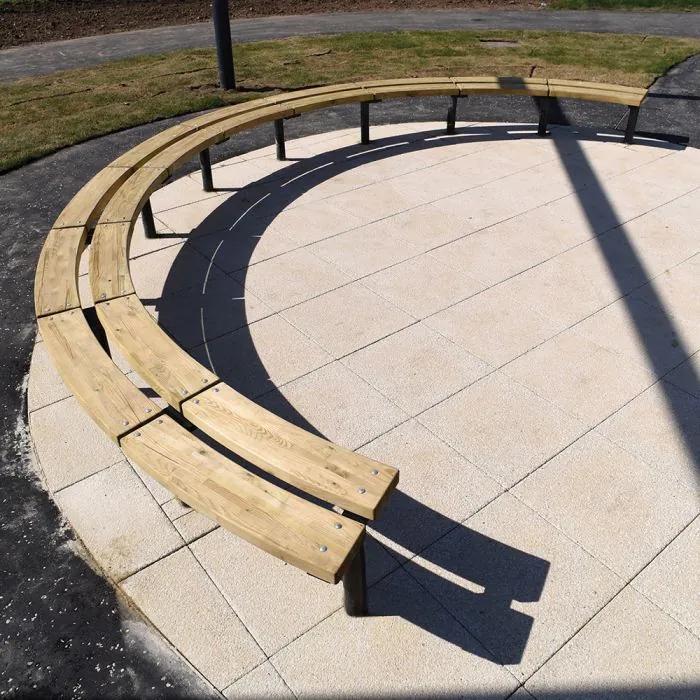

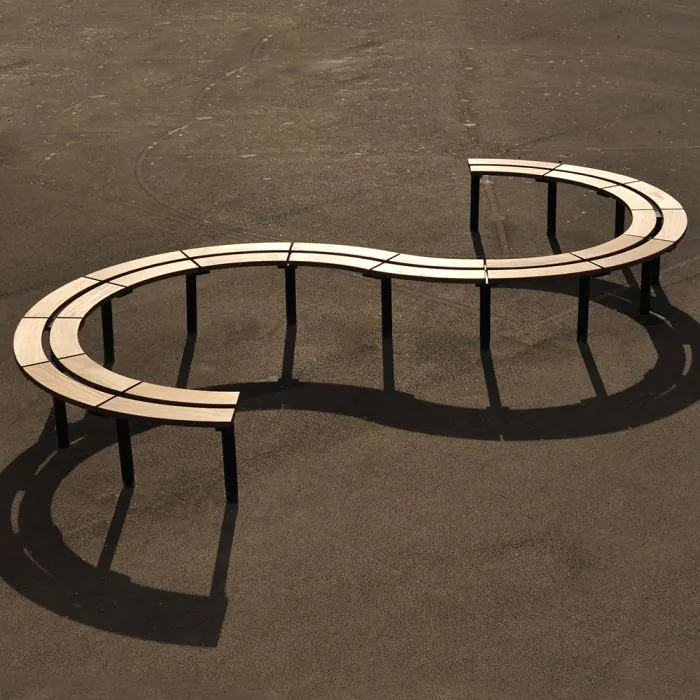

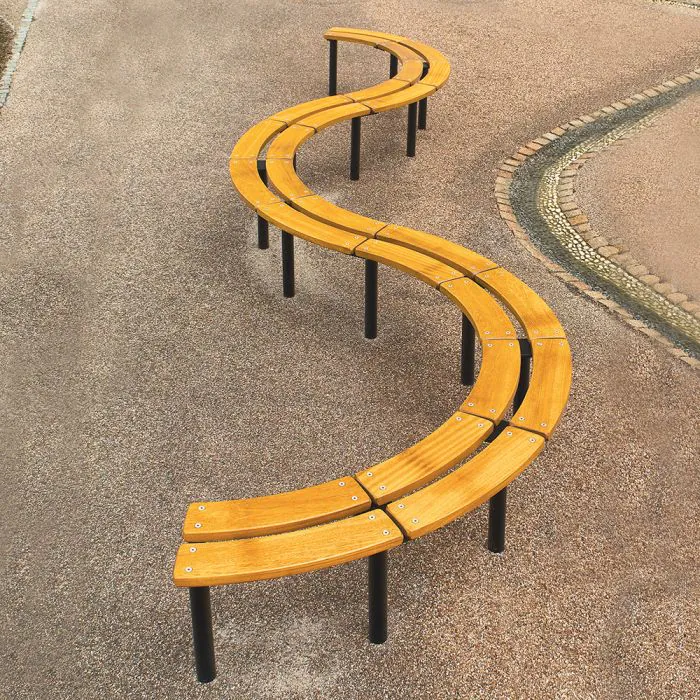

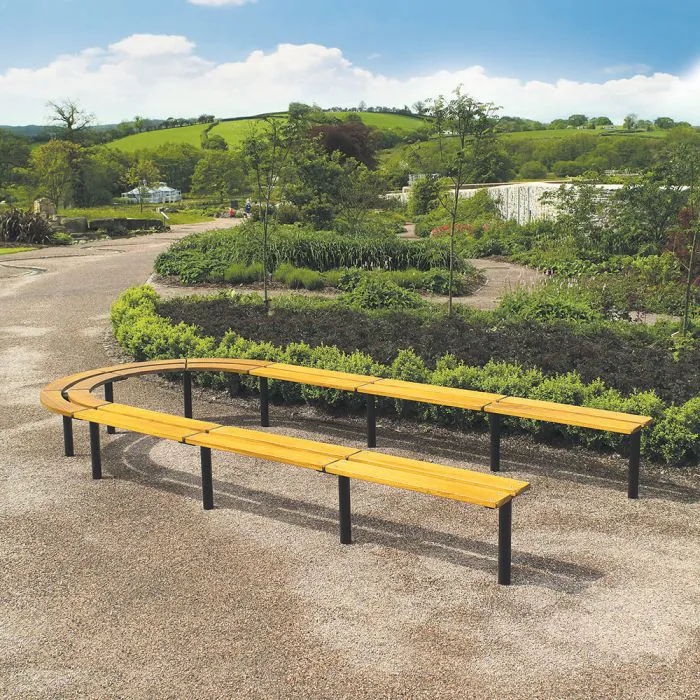

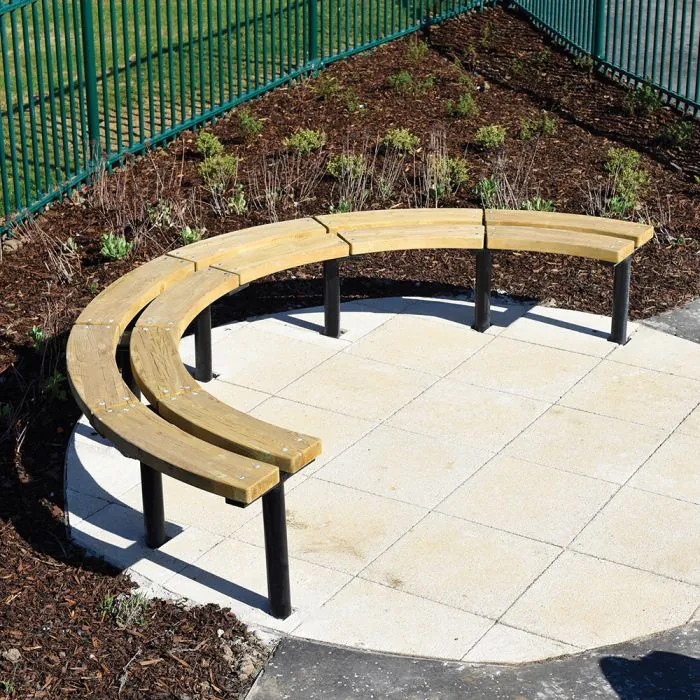

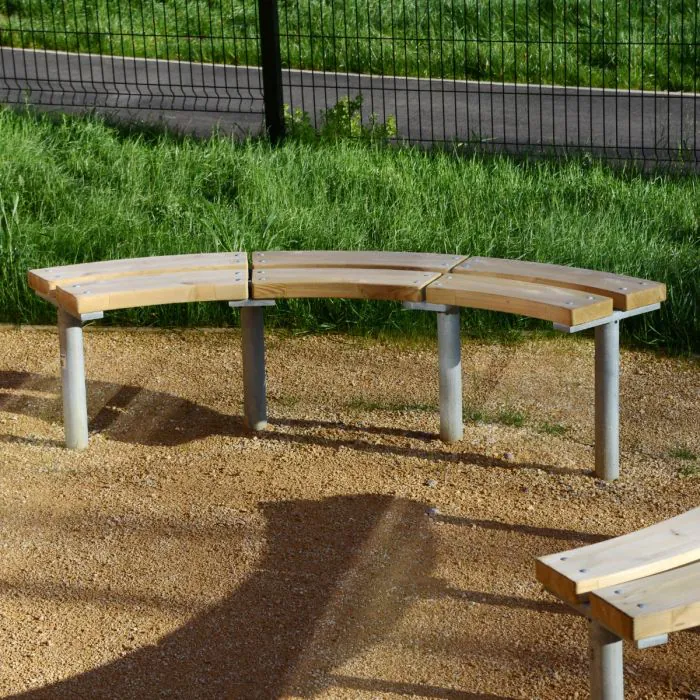

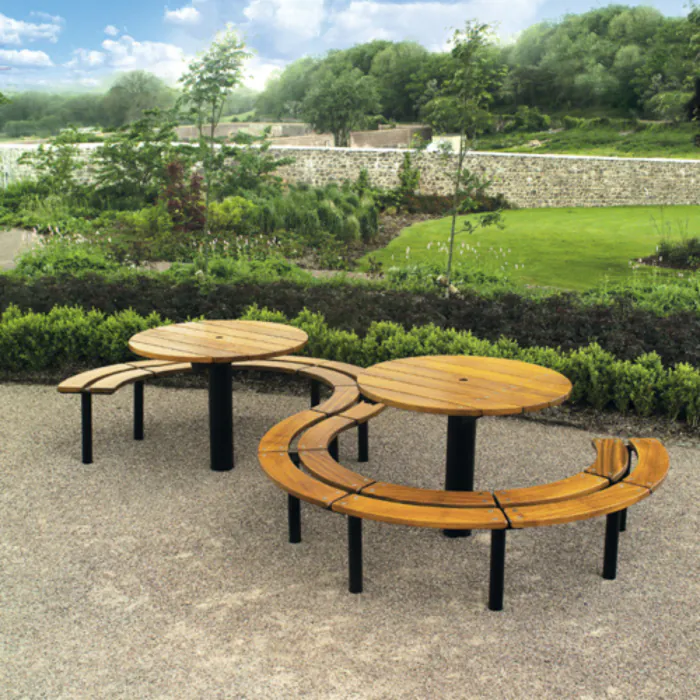

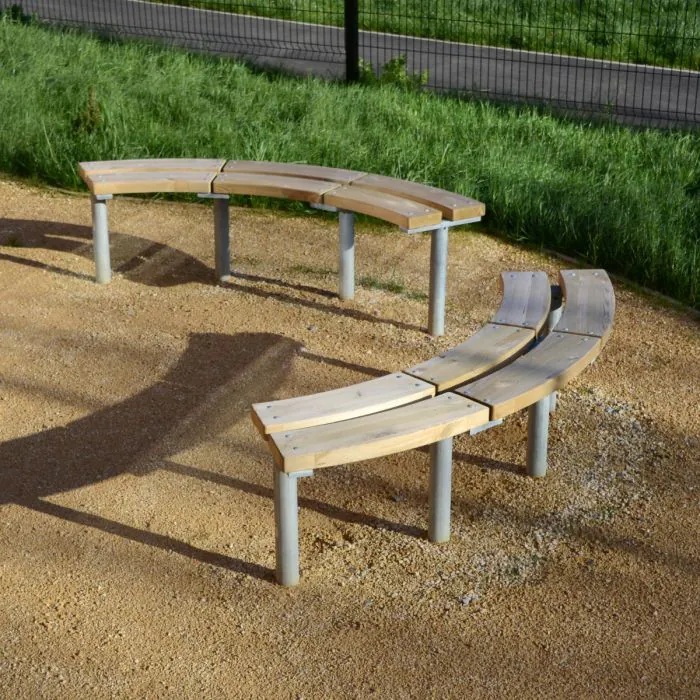

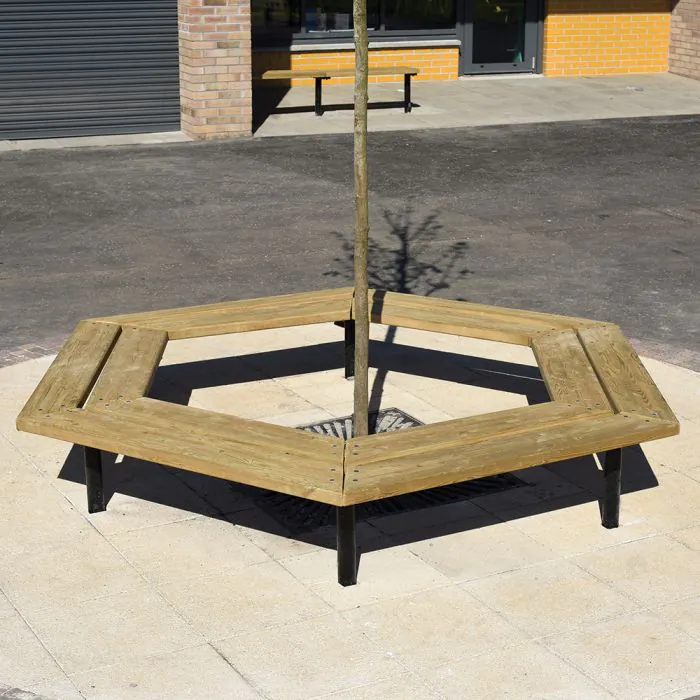

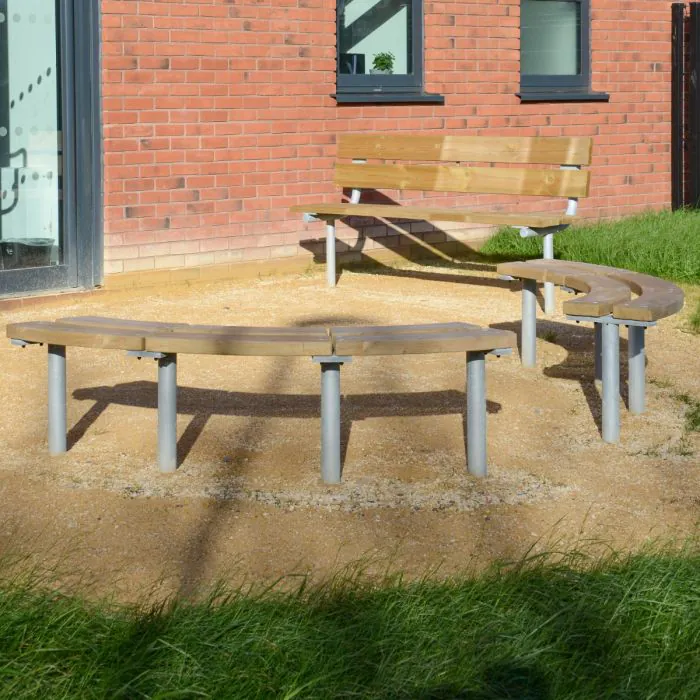

A wide range of interesting shapes can be made by combining standard board sections to make circles, part circles, squares, horseshoes, ovals, snakes and more complex arrangements.

POA

* Required Fields

POA
Description

Details

The standard frames come in three types: intermediate frames, end frames and corner frames.

  • Intermediate frames and corner frames have wider head-plates to take two sets of boards.
  • End frames are inset by 50mm from the end of the board section when linear arrangements are specified.

Dimensions:

  • Height: 482mm
  • Width: 336mm
  • Root Length: 400mm

Features:

  • Boards 32 x 145mm Iroko Slats as standard
    • 45 x 145mm Softwood Slats £POA

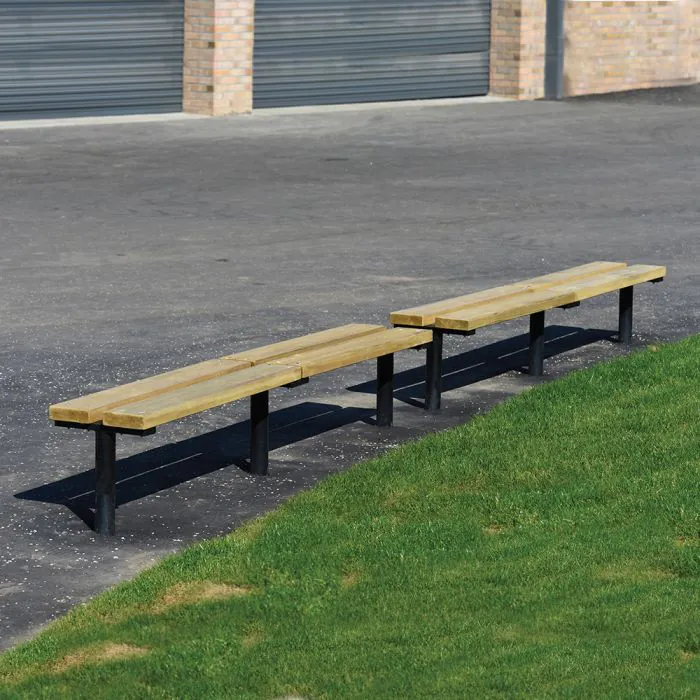

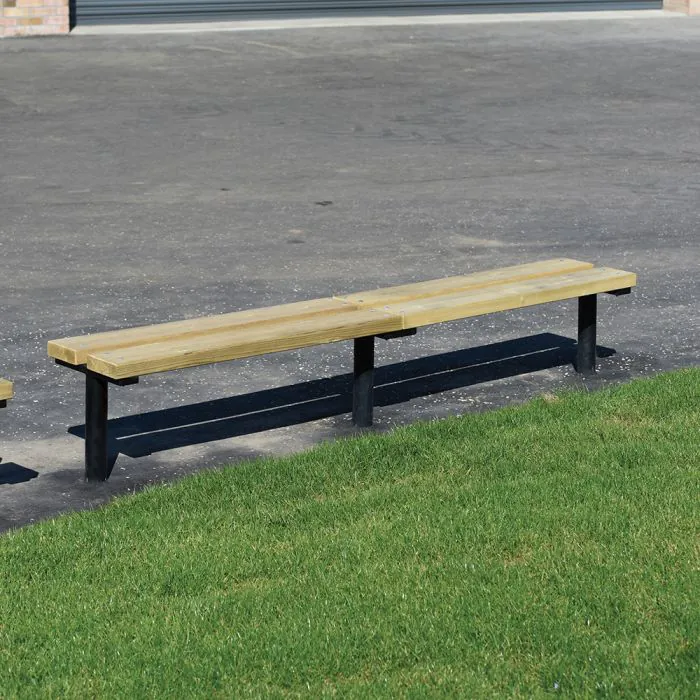

  • Standard straight board sections are 1000mm long
  • Iroko slats, root fixed or baseplate fixed

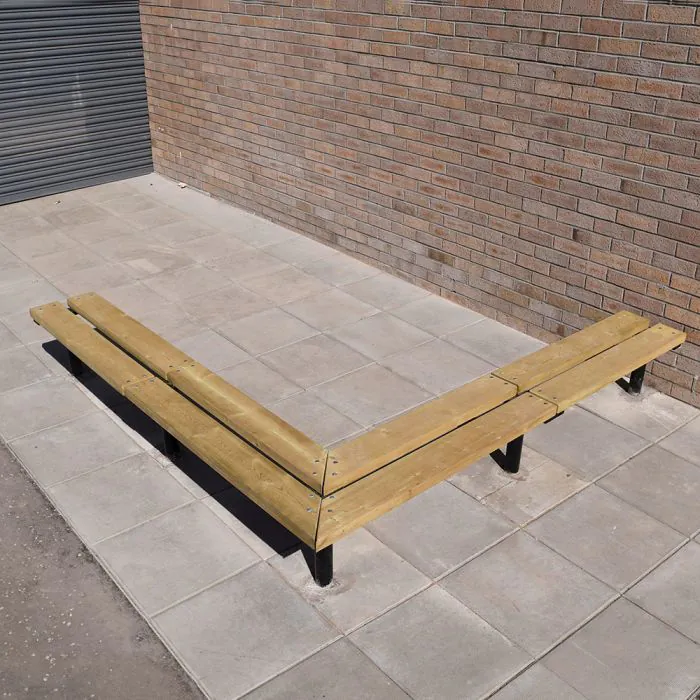

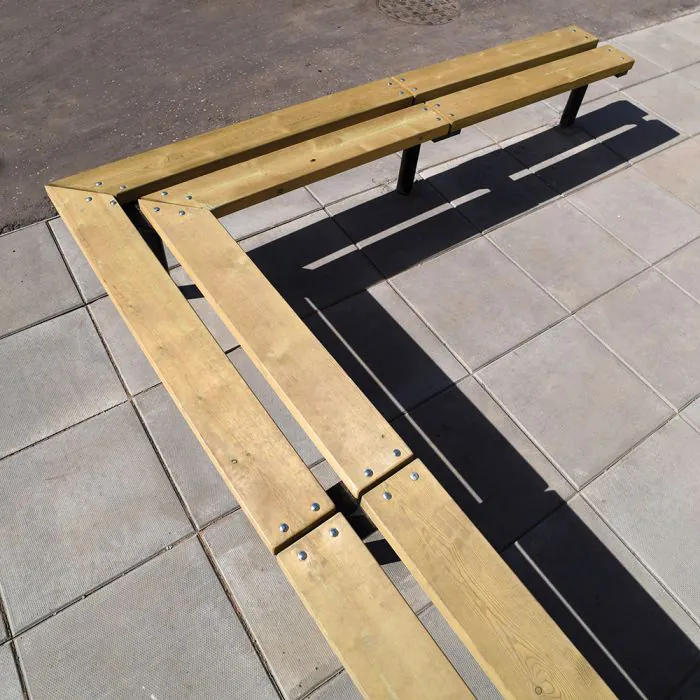

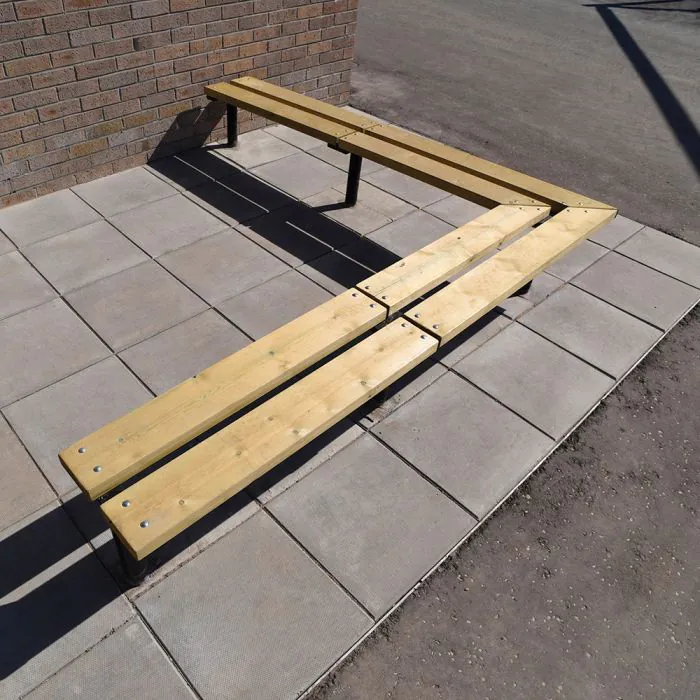

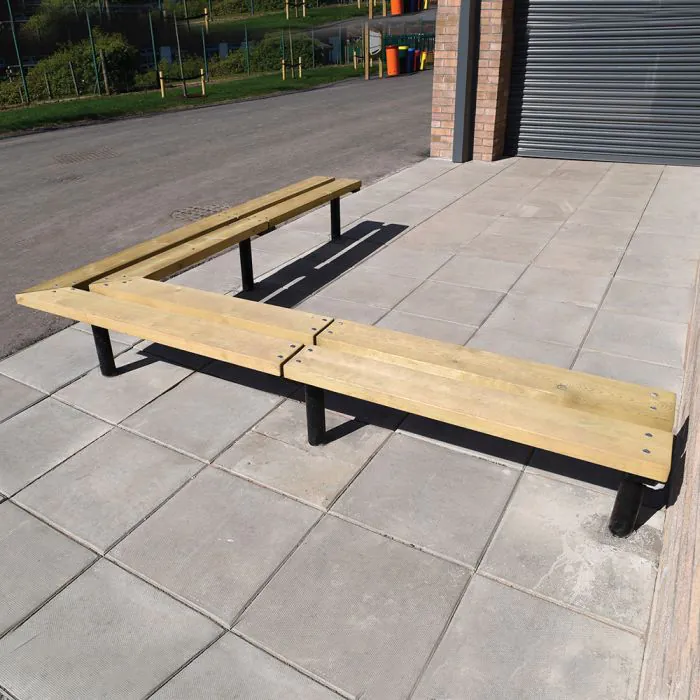

  • Standard mitred corner board sections are 1200mm long
  • Legs 60 x 3mm circular hollow, (76 x 2mm in stainless)
  • Supplied with extended legs for concreting in as standard
  • Base plate fixed but can also be submerged fixed for extra stability
