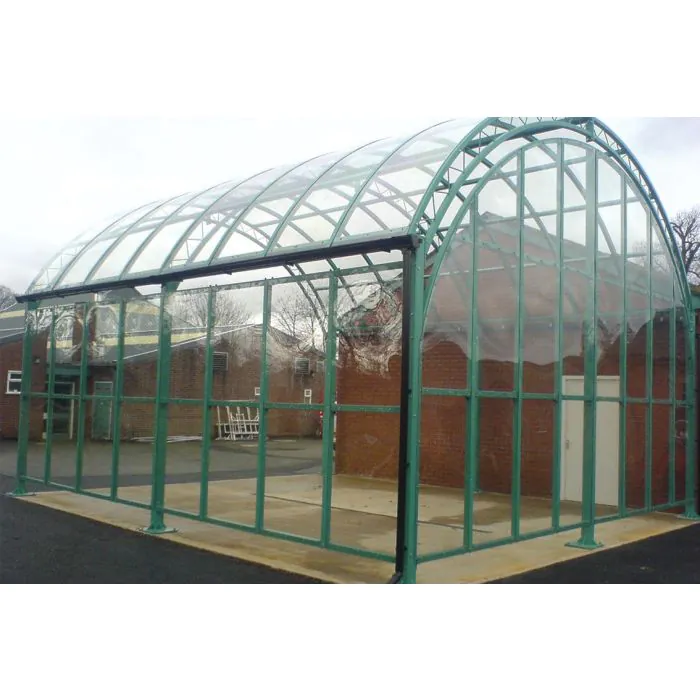

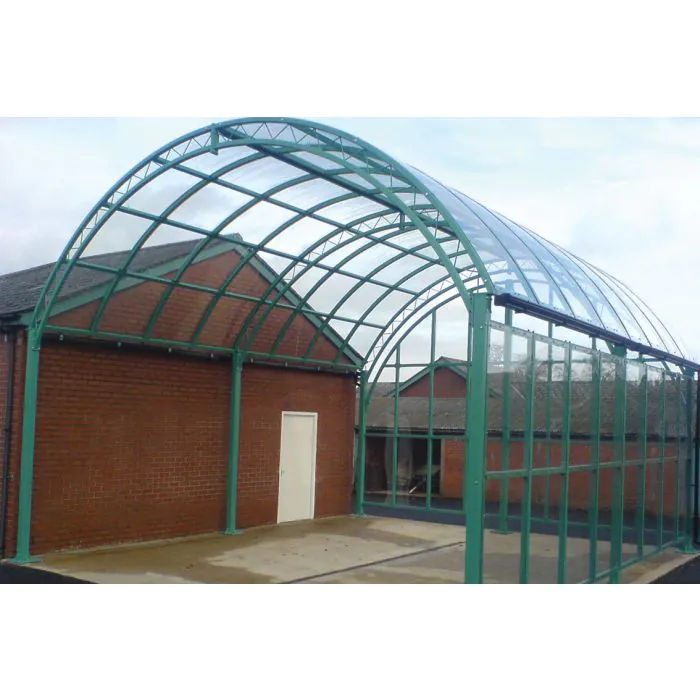

The Lattice utility shelter is a robust barrel vault canopy designed to provide covered space for vehicles, equipment and service operations. Originally commissioned to house a mini-bus with integrated jet washing facilities, this adaptable structure demonstrates the flexibility required for demanding service yard environments.
With its distinctive lattice detailing and generous internal clearance, the shelter offers a practical yet architecturally considered solution for commercial and public sector applications.
Delivery informationFind out more
Product Details:
Designed for Service Yards and Operational Areas
This outdoor utility shelter is particularly well suited to operational settings where reliable weather protection is required for vehicles and plant equipment. The barrel vault form provides efficient rainwater run-off while maximising usable internal space.
Typical applications include: • Fleet vehicle storage • Mini-bus and van housing • Jet wash bays (including central water gully provision) • Maintenance and servicing areas • Groundskeeping equipment storage
Its open-fronted configuration allows easy access for vehicles and machinery, making it a practical addition to service yards and depot environments.
Barrel Vault Structure with Lattice Detailing

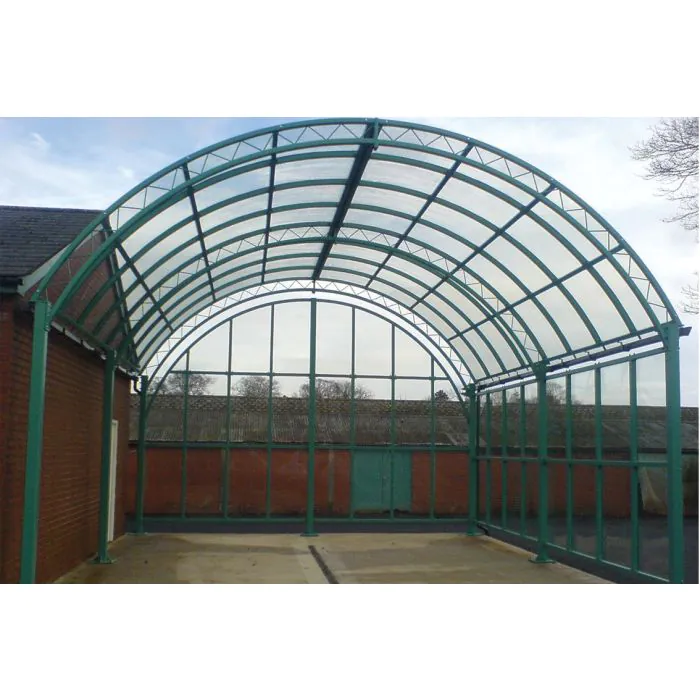

The defining feature of this lattice utility shelter is its curved barrel vault roof, supported by a structurally engineered frame. The lattice design introduces architectural interest while maintaining strength and stability.
Key characteristics include: • Barrel vault roof profile • Steel structural framework • Lattice beam detailing • Generous internal height and span • Provision for integrated drainage where required
The curved roof shape encourages effective water dispersal, helping to protect both vehicles and equipment beneath.
Built for Demanding Outdoor Environments
Manufactured for permanent installation, this equipment shelter is designed to withstand the rigours of external service areas. The robust framework supports heavy-duty use and can accommodate site-specific operational requirements.
The original commission incorporated a central water gully to support jet washing activities, demonstrating the shelter’s ability to integrate with existing drainage infrastructure.
Such adaptability makes it suitable for: • Local authority depots • Education campuses with transport fleets • Healthcare and hospital service areas • Commercial estates with maintenance teams • Leisure and sports facilities
Flexible Specification and Integration
The Lattice service yard shelter can be configured to meet project-specific dimensions and operational needs. Its modular nature allows adaptation for different vehicle sizes and circulation patterns.
It can also be specified alongside complementary external products such as: • Cycle shelters and motorcycle parking • Bollards to define vehicle routes • Waste and recycling enclosures • Covered walkways linking operational buildings
This coordinated approach supports organised and efficient service areas.
Practical Benefits • Provides covered space for vehicles and maintenance equipment • Suitable for integrated jet washing facilities • Encourages safe working conditions in adverse weather • Protects assets from prolonged exposure • Offers architectural detailing beyond a standard industrial canopy
Product Summary • Product: Lattice Utility Shelter • Design: Barrel vault canopy with lattice detailing • Application: Vehicle housing, equipment storage, service yard use • Features: Generous span, adaptable configuration, provision for integrated drainage • Suitable for: Local authorities, commercial estates, education and healthcare facilities
Features:
ClearView PETg UV roof and sides
Clear spans up to 10,000mm between shelter supports
Robust tough construction
Base plate fixing
Hot dipped galvanized
Options (£POA):
Trapezoidal Roof Cladding
Submerged fixing
Internal lighting or solar lighting
Polyester powder coated to a standard colour
Different styles available
Installation service available
Delivery Message
Broxap offer a standard carriage service for all products, this usually takes between 3-28 days as lead times vary on specific products and quantities.
