Eco-2-Tier Cycle Rack (Manual Lift)

SKU
BXMW/ECO-2Tier
From: £105.00

SOLD SECURE CERTIFIED AND SECURED BY DESIGN ACCREDITED

The compact Eco-2-Tier Cycle Rack is ideal for space-saving storage when ceiling height is a consideration.

Supplied with Red Handles as standard



SOLD SECURE CERTIFIED AND SECURED BY DESIGN ACCREDITED

The compact Eco-2-Tier Cycle Rack is ideal for space-saving storage when ceiling height is a consideration.

Supplied with Red Handles as standard

Customisable Options:

Galvanised to BS EN 1461 - 5-7 working days Find out more
Fill in your delivery details to check available shipping options and calculate rates for this product

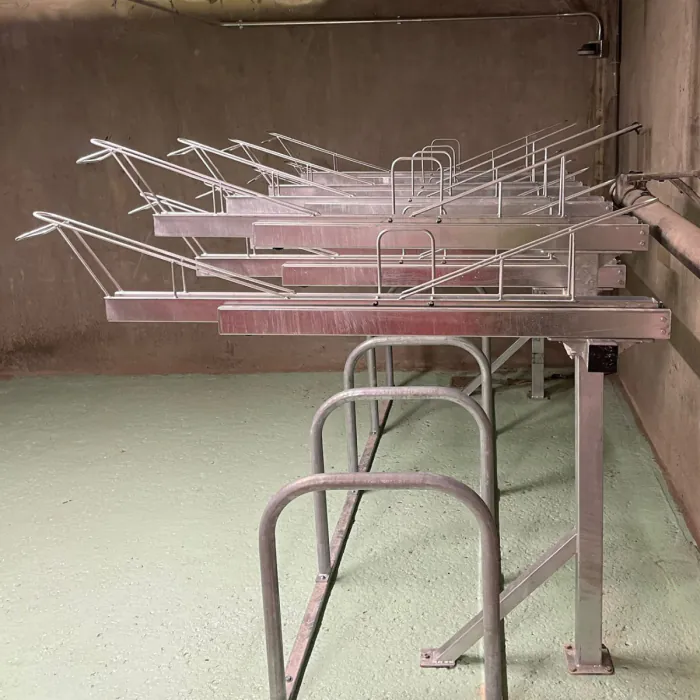

This 2-tier cycle rack is a cost effective option for space-saving cycle storage.

As most push bikes are around 15kgs they are reasonably easy to lift in the upper tier. With e-bikes being between 20 and 30 kg, we recommend our “Easi-Riser” gas strut lift-assisted 2-tier bike rack (charging points not included as standard).

At Broxap, we recommend Sheffield racks on the lower level - this is yet another way to keep your two-tier cycle parking accessible, whilst also keeping it quick and simple to clean.

OX-Rubber Trim

Broxap's "U" section rubber trim (supply only) for fitting to the front of each Easi-Riser upper-tier trough. This safety enhancement provides protection to the outward edges of the troughs. Only available in black and also cut to size for fitting by others (proprietary adhesive to bond rubber trim to steel trough, is not included.)

Download our PDF guide to using two-tier cycle racks here.

Choose from various sizes based on the cycle capacity you desire! Alternatively, bespoke versions for reduced height or length are available on request.

Capacity Calculator

Calculate how many bikes you can store

Minimum length 575mm
Minimum height requirement is 2455mm
2 No. face to face units require 5559mm

Need this in a hurry? Visit our in-stock range for cycle parking equipment for rapid dispatch.


Alternative Premium Option

Easi-Riser 2-Tier Cycle Rack

The compact Easi-Riser has gas assisted lifting, making it easy to use and ideal for space-saving storage when ceiling height is a consideration.

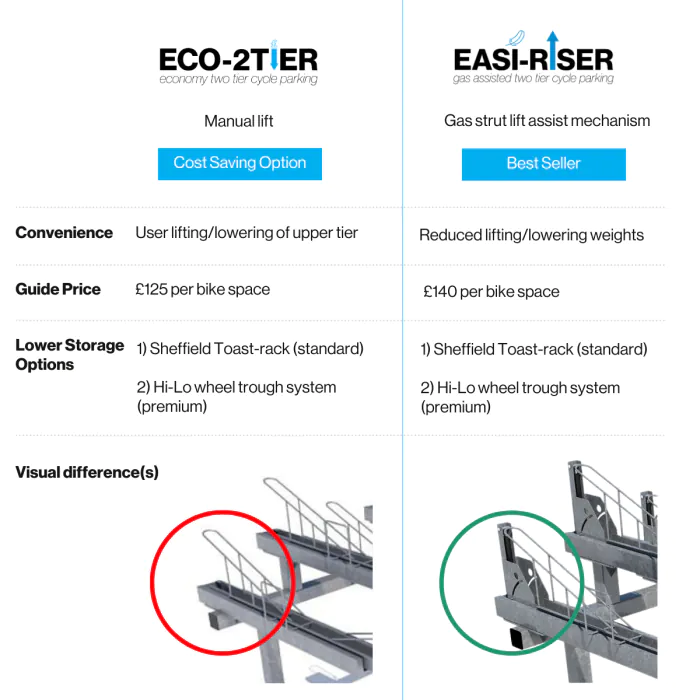

Comparison Review

If you are looking for a two-tier cycle rack option for saving space while storing bicycles, then you might be interested in the Easi-Riser and Eco-2-Tier. Both of these cycle racks offer two levels of space-saving bicycle parking.

The Easi-Riser comes with a premium gas strut mechanism as standard, which makes it exceptionally easy to operate the upper level troughs and more accessible. On the other hand, the Eco-2-Tier is a manual lift economical option.

Design

In terms of design, both two-tier cycle racks have the same size, specifications, material and options. However, the Easi-Riser offers more convenience as it has a gas strut mechanism to help load and unload bicycles, while the Eco-2-Tier is a manually operated lift.

Conclusion

In conclusion, if you are looking for a two-tier cycle rack that is cost-effective and space-saving, the Easi-Riser and Eco-2-Tier Cycle Racks are both great options. The only difference between them is that one is gas-assisted (Easi-Riser) and the other is manually operated (Eco-2-Tier).

Features

  • Each set of four "cycle spaces" consists of two upper-tier troughs and one lower-tier Sheffield hoop.
  • Sheffield racks can be easily swept clean.
  • Staggered upper level troughs allow for varying cycle hand bars to avoid clashing and enable easy operation.
  • Can contribute towards gaining ENE8 credits when used in the appropriate situation, under the Code for Sustainable Homes.
  • BREEAM and Code for Sustainable Homes Compliant.
  • Operating space: 3679mm
  • Cycle Spacings and trough sizes consider measurements and specifications from the C.T.C. (Cycle Touring Club) i.e. Cycling UK.
  • Red handles as standard

Options:

  • Sizes options based on cycle capacity
  • Finish: framework, lower rack and upper trough/runners are galvanized only.
  • OX - Rubber Grip

Delivery Message

Current lead time

  • Galvanised to BS EN 1461 - 5-7 working days

Please note

Your estimated delivery date will be displayed on your order confirmation. A member of the Transport team will contact you prior to despatch to arrange delivery.

Recent Case Studies

Winchburgh Academy

Winchburgh Academy, Edinburgh

Growing demand for school places has been met with the creation of a new academy which has been designed to accommodate future expansion...

Castle Mead Academy, Leicester

Castle Mead Academy, Leicester

The riverside location of a new secondary school was a big inspiration for the development of its outdoor areas...

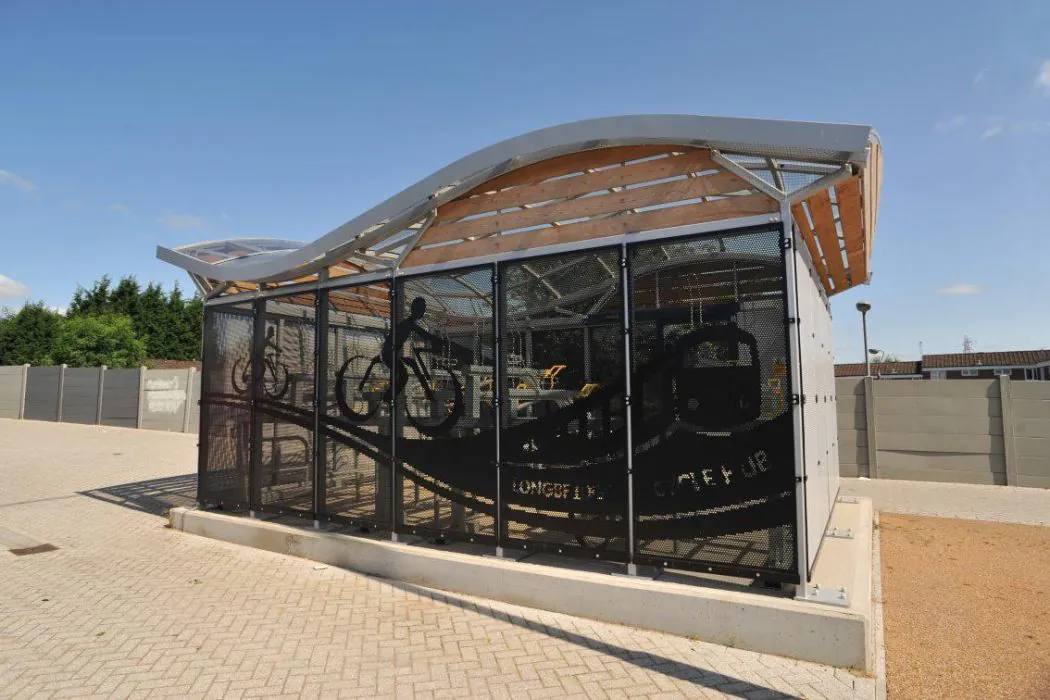

Centro Cycle Hub - Broxap
