SOLD SECURE CERTIFIED AND SECURED BY DESIGN ACCREDITED
The Eco system is a space-efficient two tier cycle rack designed to maximise bicycle parking capacity where available footprint is limited. Supplied from stock for immediate despatch, it provides a practical solution for projects requiring rapid deployment without sacrificing usability or safety.

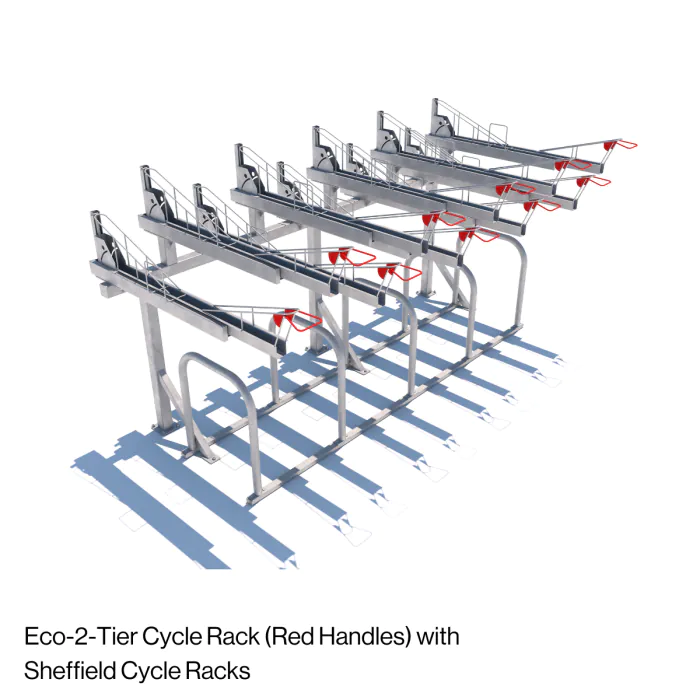

Designed primarily for standard push bikes, the Eco 2 Tier system combines an upper-level lifting rack with Sheffield-style stands at ground level, creating a balanced and accessible cycle storage arrangement.
Supplied with Red Handles as a standard
Product in Stock. Express Delivery AvailableFind out more
Fill in your delivery details to check available shipping options and calculate rates for this product
Product Details:
Please Note: Two tier cycle parking systems are designed to be installed on a flat and level, suitable engineered concrete base.
We have an Eco-Riser 2-Tier Bike Racks in stock, ready for immediate despatch. These racks are a cost-effective option for space-saving cycle storage. The Eco-Riser is the recommended choice for push bikes, which can weigh around 15kg. Sheffield racks on the lower level make the bike rack accessible and easy to clean.
OX-Rubber Trim Broxap's "U" section rubber trim (supply only) for fitting to the front of each Eco-Riser upper tier trough. This safety enhancement provides protection to the outward edges of the troughs.
Capacity Calculator
Only available in black and cut to size for fitting by others (proprietary adhesive to bond rubber trim steel trough, is not included.)
*Please note that these options are made to order and are not readily in stock.
Space-Saving Two Tier Cycle Storage
The two-level configuration allows bicycles to be stored vertically one above the other, effectively doubling capacity compared to single-level layouts. As a two tier cycle storage system, it is particularly well suited to sites where demand is high and expansion space is constrained.
Key capacity benefits include: • High-density parking within a compact footprint • Clear separation between upper and lower parking levels • Improved organisation in busy cycle parking areas
The design supports efficient circulation and reduces congestion in high-use environments.
Designed for Everyday Push Bikes
The Eco-Riser upper tier is recommended for standard push bikes, typically weighing around 15kg. The lifting mechanism supports controlled loading and unloading, helping users position bikes safely at height.
Lower-level two tier bike rack parking is provided via Sheffield stands, offering: • Easy access for all users • Secure locking of frame and wheels • Familiar, intuitive use
This combination improves overall accessibility and simplifies maintenance and cleaning at ground level.
Safety and User Protection Features
To enhance safety, the upper troughs are supplied with OX-rubber trim to the front edges. This U-section rubber trim provides protection against sharp edges and reduces the risk of contact injuries during use.
Safety features include: • Rubber edge protection on upper tier troughs • Controlled lifting design for safe operation • Clear distinction between parking levels
These details make the system suitable for workplace, education, and transport environments with regular daily use.
Installation Requirements
The Eco 2 Tier Cycle Rack must be installed on a flat, level, engineered concrete base to ensure correct operation and long-term performance. This requirement is critical for the alignment and safety of the upper lifting mechanisms.
Installation considerations: • Suitable for indoor or covered external locations • Requires accurate setting out on prepared concrete • Best specified early within build programmes
Once installed, the system provides a durable and low-maintenance double deck cycle rack solution.
Typical Applications
This 2 tier cycle rack system is commonly specified where rapid delivery and efficient use of space are priorities.
Typical use cases include: • Workplace and office developments • Educational campuses and student accommodation • Transport hubs and mobility centres • Residential developments with limited cycle storage space
It is often installed alongside cycle shelters, access-controlled compounds, or end-of-trip facilities to form part of a wider active travel strategy.
A Practical, Stocked Two Tier Solution
The Eco 2 Tier Cycle Storage System offers a straightforward approach to increasing cycle parking capacity using a proven, accessible format. Its combination of upper Eco-Riser racks, lower Sheffield stands, and safety detailing makes it a dependable option for high-demand sites.
As a stocked two tier cycle rack, it supports fast project delivery while providing efficient, user-friendly cycle storage.
We have an Eco-Riser 2-Tier Bike Racks in stock, ready for immediate despatch. These racks are a cost-effective option for space-saving cycle storage. The Eco-Riser is the recommended choice for push bikes, which can weigh around 15kg. Sheffield racks on the lower level make the bike rack accessible and easy to clean.
OX-Rubber Trim Broxap's "U" section rubber trim (supply only) for fitting to the front of each Eco-Riser upper tier trough. This safety enhancement provides protection to the outward edges of the troughs.
Only available in black and cut to size for fitting by others (proprietary adhesive to bond rubber trim steel trough, is not included.)
*Please note that these options are made to order and are not readily in stock.
Alternative Premium Option
Easi-Riser 2-Tier Cycle Rack
The Easi-Riser 2-Tier bike rack, which features gas-assisted lifting for easy use, is ideal for space-saving cycle storage when ceiling height is a consideration.

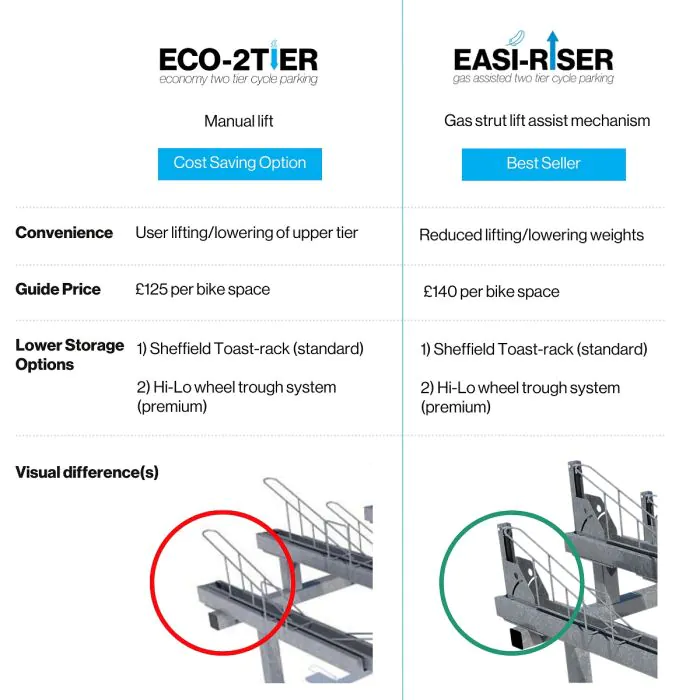

If you are looking for a two-tier cycle rack option for saving space while storing bicycles, then you might be interested in the Easi-Riser and Eco-2-Tier. Both of these cycle racks offer two levels of space-saving bicycle parking.
The Easi-Riser comes with a premium gas strut mechanism as standard, which makes it exceptionally easy to operate the upper level troughs and more accessible. On the other hand, the Eco-2-Tier is a manual lift economical option.
Design
In terms of design, both two-tier cycle racks have the same size, specifications, material and options. However, the Easi-Riser offers more convenience as it has a gas strut mechanism to help load and unload bicycles, while the Eco-2-Tier is a manually operated lift.
Conclusion
In conclusion, if you are looking for a two-tier cycle rack that is cost-effective and space-saving, the Easi-Riser and Eco-2-Tier Cycle Racks are both great options. The only difference between them is that one is gas-assisted (Easi-Riser) and the other is manually operated (Eco-2-Tier).
