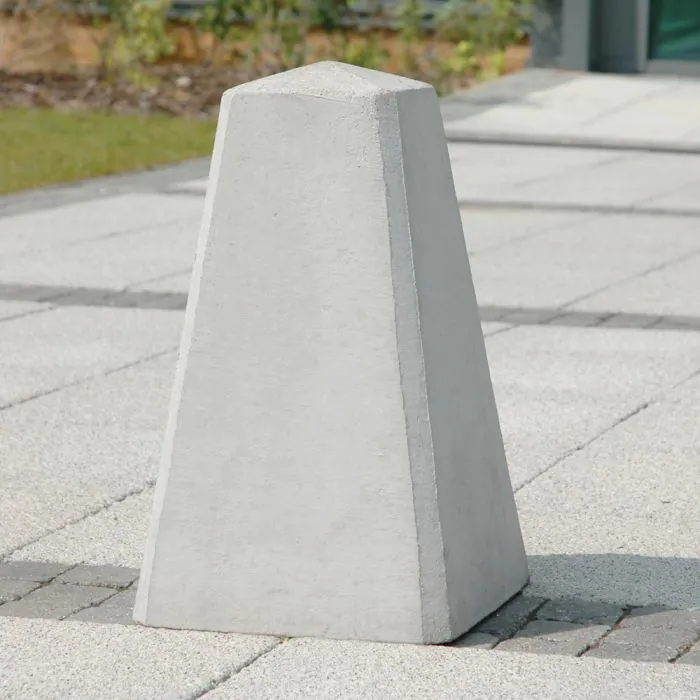

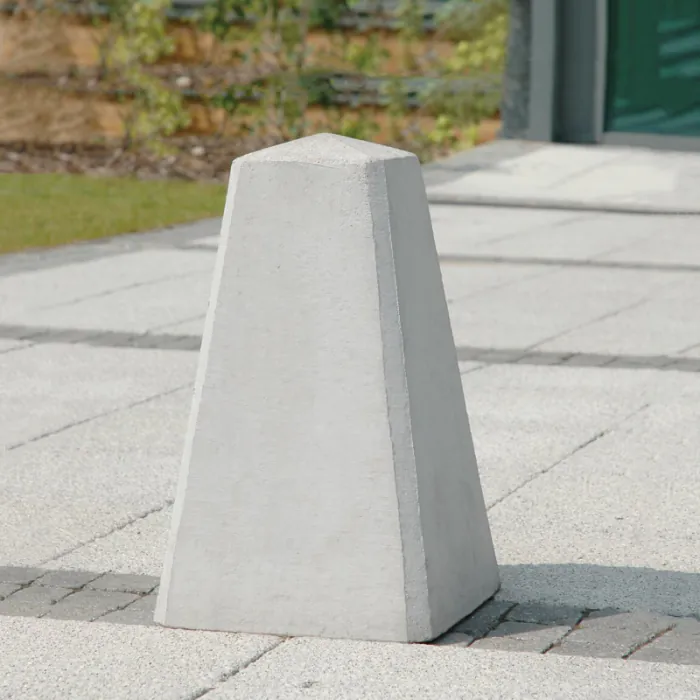

The Edlington is produced using carefully controlled precast methods to ensure consistency in strength, finish and dimensional accuracy. Its pyramid form provides a broad base and tapered profile, reinforcing both structural reliability and visual impact.
Key construction details include:
• High-strength precast concrete body
• Smooth grey finish as standard
• Approximate weight of 70kg
• 10mm hole through the upper section to allow chain adaptation
As one of Broxap’s precast concrete bollards, the Edlington is designed to withstand daily wear, environmental exposure and incidental impact in busy public areas.
The bollard is supplied with a 30mm deep M16 threaded socket cast centrally into the base. This detail allows for secure in-ground fixing using a threaded bar where required (threaded bar not supplied).
This flexibility makes the Edlington suitable for:
• Surface mounted installations where excavation is limited
• Retrofit applications within existing hard landscaping
• Schemes requiring additional anchorage for enhanced stability
When specified as reinforced concrete bollards within controlled environments, secure fixing can provide added reassurance in areas subject to higher vehicle interaction.

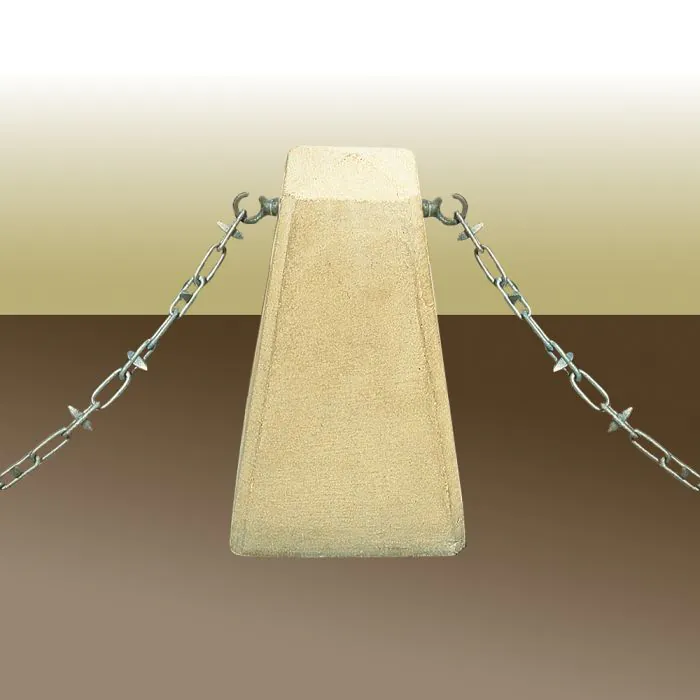

A 10mm hole is incorporated into the upper section of the pyramid to accommodate chain connections. This allows the Edlington concrete bollard to form part of a linked barrier system, offering:
• Controlled pedestrian access
• Temporary or semi-permanent boundary definition
• Flexible vehicle restriction in plazas or forecourts
Chain-linked arrangements are commonly specified in retail parks, hospitality settings and heritage sites where defined access is required without permanent enclosure.
The Edlington is well suited to:
• Retail forecourts and shopping centres
• Civic squares and public plazas
• Car parks and service yards
• School and campus environments
• Industrial and commercial perimeters
Its bold geometric form provides clear visual demarcation, supporting both safety and spatial organisation. As part of Broxap’s wider range of security concrete bollards, it can be combined with additional bollard types or coordinated street furniture to create a unified external scheme.
Key Features
• Surface mounted pyramid concrete bollard
• Manufactured from high-quality precast concrete
• Smooth grey finish
• Approximate weight 70kg
• 10mm hole for chain adaptation
• 30mm deep M16 threaded socket cast into base
• Suitable for surface fixing or in-ground anchorage
The Edlington offers a durable and adaptable solution within Broxap’s concrete bollards range, delivering dependable performance and clear boundary definition across UK public and commercial environments.
