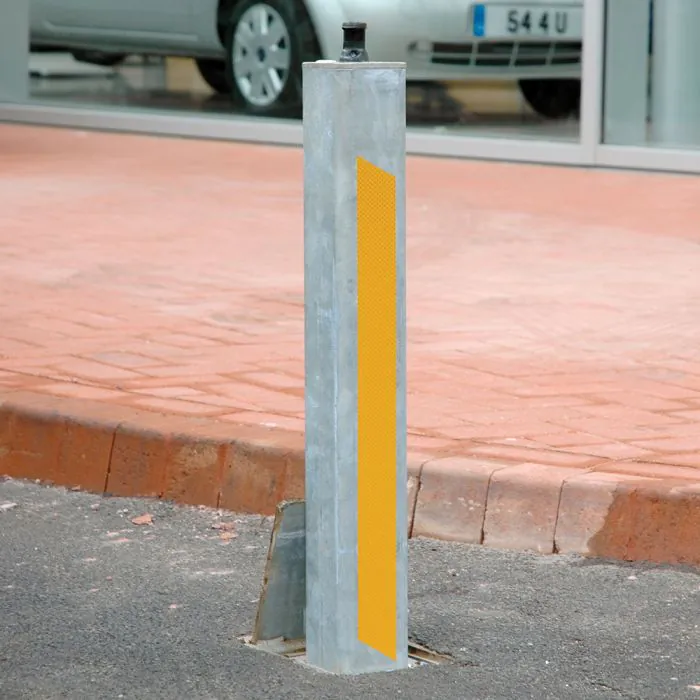

Unlike fixed posts, the telescopic driveway bollard is designed to lower flush with the surrounding surface, maintaining a clear and level finish when access is permitted. When raised, it forms a solid barrier to deter unauthorised parking and vehicle entry.
Typical applications include:
• Private and residential driveways
• Allocated parking bays
• Commercial forecourts
• Service yards and loading areas
• Access points within mixed-use developments
The discreet ground-level finish when retracted makes it appropriate for high-footfall areas where trip hazards must be minimised.
Hard-Wearing Steel Design

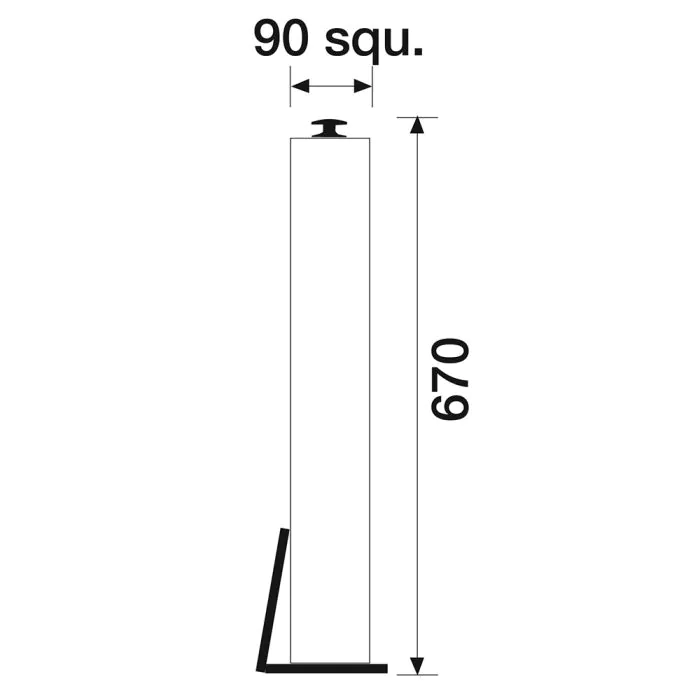

The standard manual parking post is supplied at 670mm above ground height when raised, with a 90mm square profile. Its square form offers a contemporary appearance while providing structural strength against low-speed vehicle contact.
Key specification details:
• 670mm height (above ground when raised)
• 90mm square section
• Heavy-duty steel construction
• Designed for in-ground installation
The post is engineered to withstand daily operation in exposed environments, supporting long-term reliability in both public and private settings.
Controlled Raising and Lowering

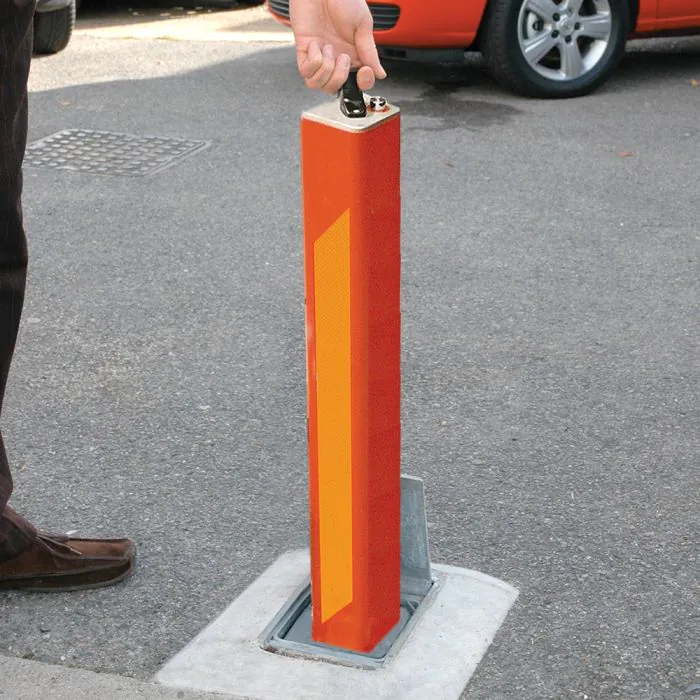

The manual telescopic bollard is operated using an integrated handle, allowing users to raise or lower the post as required. For locations where frequent use is expected, the BX20 5350-SQ-LA variant incorporates a lift-assisted mechanism to reduce the physical effort required during operation.
Operational features include:
• Smooth manual lifting and lowering
• Secure upright locking position
• Flush finish when retracted
• Optional lift-assisted version for easier handling
This combination of manual control and optional assistance provides flexibility for a wide range of operational requirements.
Correct installation is essential to ensure consistent performance and smooth operation. The telescopic parking post is designed to be set within a concrete foundation, with provision made for drainage within the ground sleeve to prevent water accumulation.
Installation guidance:
• Concrete foundation required
• Drainage provision within sleeve
• Suitable for block paving, tarmac, or concrete surfaces
• Alignment critical for smooth telescopic movement
For larger sites, the post can be specified alongside fixed bollards or height restriction barriers from the Broxap range to form part of a comprehensive access management strategy.
The telescopic bollard offers an effective balance between permanent security and operational flexibility. It is frequently specified where automation is unnecessary, but a robust physical deterrent is still required.
Common benefits include:
• Prevention of unauthorised parking
• Minimal visual impact when lowered
• Durable construction for repeated use
• Suitable for residential and commercial schemes
Whether used as a telescopic driveway bollard or within a managed car park environment, this manual solution provides reliable and economical access control.
Key Features
• 670mm height x 90mm square profile (standard model)
• Heavy-duty steel construction
• Flush recessed installation when lowered
• Manual operation with integrated handle
• Lift-assisted variant available (BX20 5350-SQ-LA)
• Suitable for driveways, car parks, and forecourts
