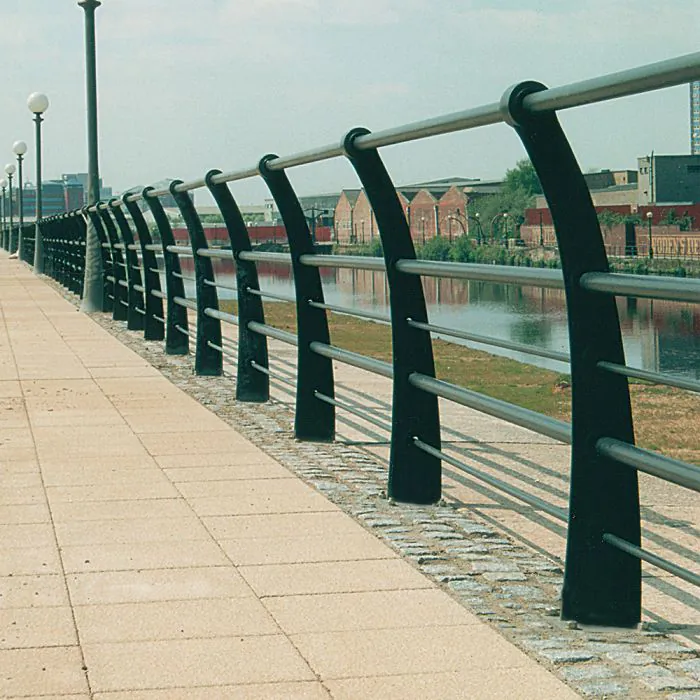

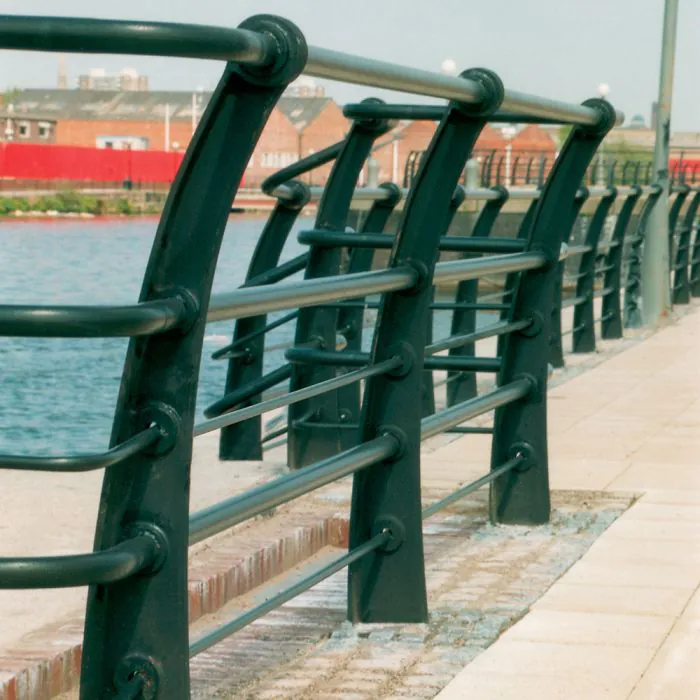

This quayside safety barrier features a five-rail arrangement to provide enhanced containment and visual definition along waterfront edges.

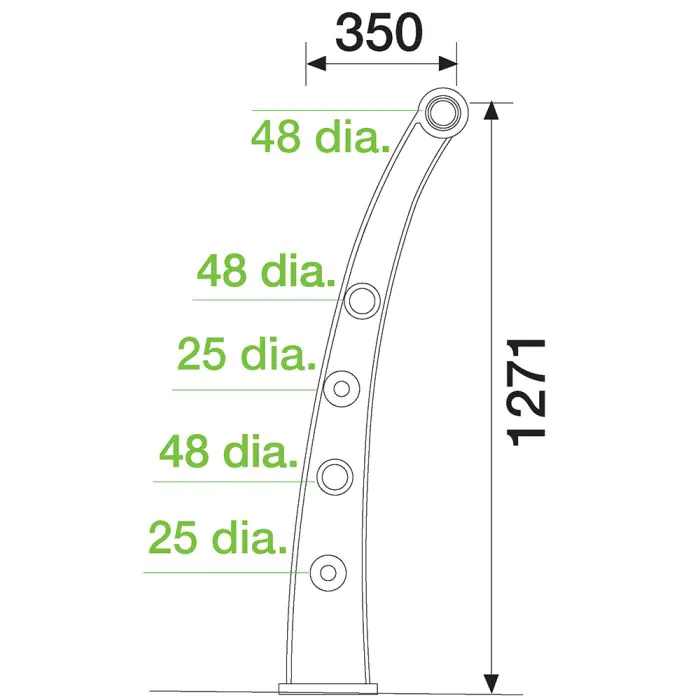

The post is designed to accommodate:
• 3 x 48.3mm diameter rails in polyurethane (straight runs only), galvanised mild steel or grade 316 stainless steel
• 2 x 25mm diameter rails in galvanised mild steel or grade 316 stainless steel
This combination of rail sizes creates a strong and structured pedestrian guardrail system, offering increased safety in high-footfall waterside locations.
Each post is manufactured from Duracast™ polyurethane, selected for its durability and resistance to corrosion. Unlike traditional cast iron, polyurethane does not rust, making it particularly suitable for exposed marine and coastal environments.
Key features include:
• Duracast™ polyurethane post
• Supplied painted in a single standard Broxap colour
• Curved post profile
• Available root fixed or baseplated
• Also available in ductile iron
As waterside railings, these systems must withstand harsh environmental conditions, including salt air and high moisture levels. The material selection ensures long-term performance with minimal maintenance.
The Quayside Curved PU 5 Rail system is frequently specified in environments where pedestrian safety and boundary definition are critical.
Typical applications include:
• Harbours and marinas
• Canal towpaths
• Riverside promenades
• Coastal walkways
• Regeneration and waterfront developments
• Leisure and hospitality schemes near water
As a pedestrian safety barrier, it provides reassurance for users while supporting open views across the water.
To accommodate varying ground conditions and structural requirements, the quayside railings are available with:
• Root fixed installation for maximum stability
• Baseplate fixing for installation onto prepared concrete surfaces
This flexibility supports both new-build waterfront schemes and refurbishment of existing quayside infrastructure.
The Quayside Curved PU 5 Rail system can be specified alongside complementary polyurethane bollards, heritage lighting columns and other pedestrian guardrail systems to create a cohesive waterfront design.
The option of galvanised or stainless steel rails allows further coordination with surrounding materials and finishes.
Key Features
• Quayside railings with five-rail configuration
• Duracast™ polyurethane post
• Combination of 48.3mm and 25mm diameter rails
• Rail options in polyurethane, galvanised mild steel or grade 316 stainless steel
• Root fixed or baseplated installation
• Also available in ductile iron
The Quayside Curved PU 5 Rail system offers a durable and visually appropriate solution for waterside railings, delivering dependable pedestrian safety in demanding waterfront environments.
Price per single duracast™ polyurethane (PU) post painted in a single standard Broxap colour only
Available with a baseplate fixing or root fixed
The post is designed to take 3no 48.3mm diameter rails in polyurethane (straight runs only), galvanised mild steel or grade 316 stainless steel; plus 2no 25mm diameter rails in galvanised mild steel or grade 316 stainless steel
Also available in ductile iron.
